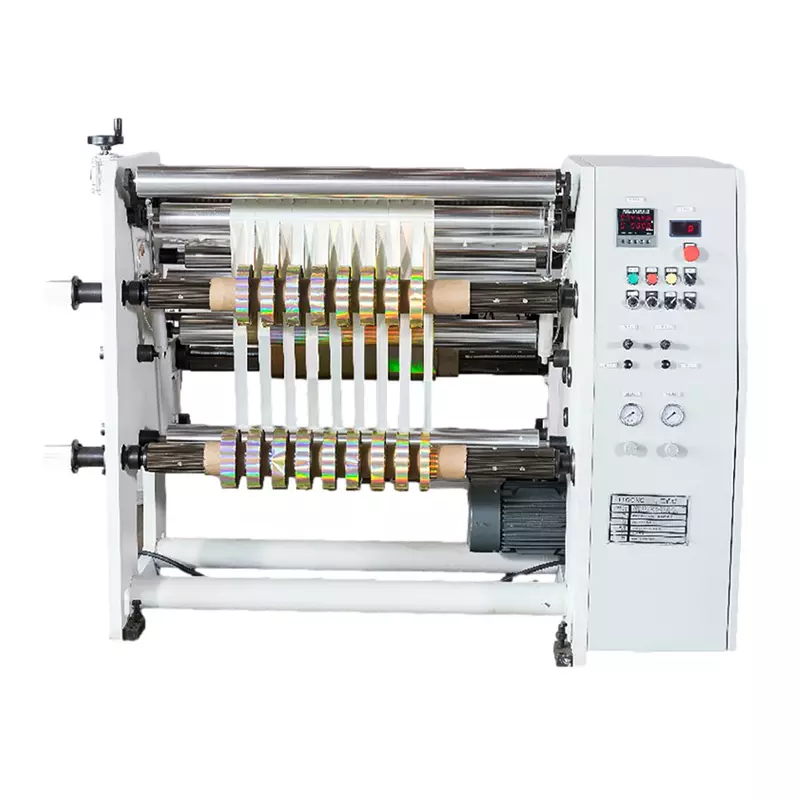

I. Technical Specifications:

1. Power Supply: AC 380V
2. Air source: 5 bar
3. Maximum width of the material: 1000mm
4. Minimum strip width: 25mm
5. Maximum diameter of unwinding: φ800mm, 3-inch shaft
6. Maximum diameter of the roll: φ300mm, 3-inch shaft/1-inch shaft
7. Maximum speed: 150 meters per minute
8. Motor power: 2.2kw

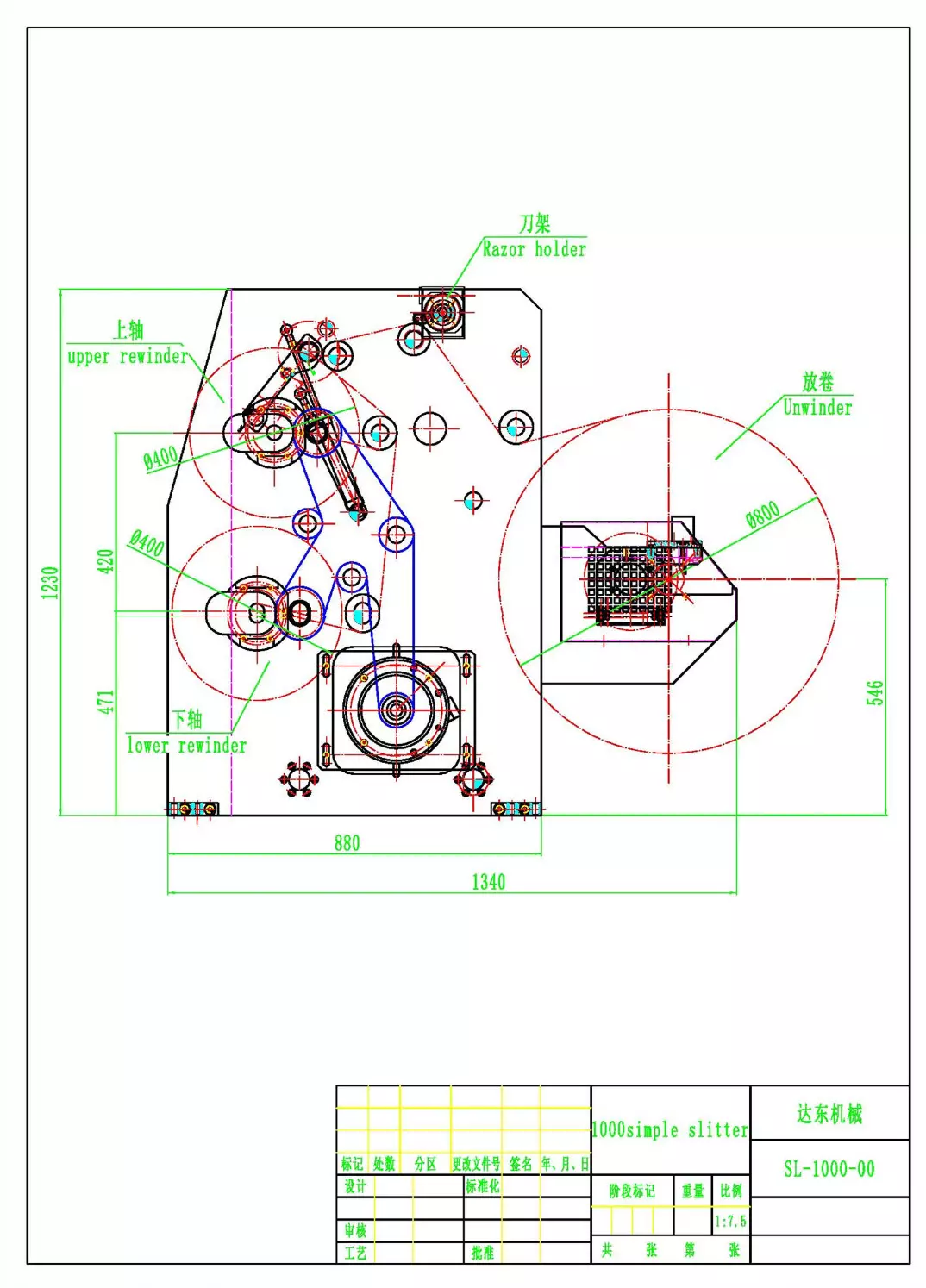

Length x Width x Height: 1292 x 1523 x 1237

II. Structure

1.
   1. Rack: Thickness of the steel plate is 35mm.
   2. Unwinding: The 5kg magnetic powder brake controls the unwinding tension.
   Accessory: 3-inch air-expandable spool, 1 piece. No deviation correction device included.
   3. Guide rollers: Utilize φ80X1000mm dynamic and static balanced guide rollers.
   4. Cutting Components: Flat knife cutting method: Lower knife guide roller, equipped with 30 knife handles.
   5. Collection: ① Arm-type film loading/unloading device. ② Separate upper and lower collection rollers, equipped with: 1-inch rollers: 2 pieces, 3-inch rollers: 2 pieces
   ③ It is directly driven by a 2.2KW motor, and the speed is not constant. It becomes faster as the roll diameter increases.
   ④ The upper reel is equipped with an air-driven pressure roller.
   6. Operation Panel: ① On the panel, there is a speed/meter controller ZX-338 for setting the stopping meter distance.
   ② Manual tension controller for unwinding.
   7. Electrical: Use Schneider electrical components.
   8. Pneumatic: Utilizing AIRTAC pneumatic control components and cylinders.
